New arrival !!! Full HD DLP HIGH BRIGHTNESS PROJECTOR 8000 Lumens(Approximately equal to 10000Lumens DLP projector) , 350W Philips UHP Lamp,3D Ready (DLP Shutter 3D) with HDMI 2VGA ,Mini USB, RS232, Dynamic contrast Ratio: 15000:1 ,Built-in Speaker 2.0 Watts










Extreme color technology, lifelike image
Using new generation Ti DDP2431 processing chip, integrates converts analog signals to digital signal processing, signal processing ability is stronger, the frequency signal pixels [compatible to UXGA resolution], bring extreme color overall feelings, further enhance the brightness and color expressive force, bring more fluent image effect.

Improve the thermal design Super cooling sex
Perfect heat conduction system, the reasonable structure of heat convection, prolong the service life of main parts.Perfect thermal design guarantee in high strength application environment, always maintain a stable heat dissipation.

No signal automatic shutdown function
If no signal input and within a specified length of time does not perform any operation, the projector will automatically shut down, intelligent environmental protection, energy saving.(when power saving mode setting values for "zero", the projector will not automatically shut down)

USB direct investment shows
Through the USB wireless adapter, wireless connectivity;Direct projection persisting the contents of the U disk.

High brightness high resolution
our engineering projector with high brightness and high resolution, can choose freely according to engineering customer's own needs and budget, which can be widely applied in the large hall, staff activity center, the monitoring center and other occasions.

Enhanced engineering lens
Projection than 1.45 to 2.18, in the 3 m distance can be projected 100 inch screen, far more than ordinary engineering machine of 1.8-2.4, and 1.5 X large zoom ratio, according to different customers' optional installation environment.

Shipment and Payment

  • All ordered units will be shipped out within 24-48 hours via FedEx or DHL after order confirmation and payment.
  • To protect the units from potential damage during the delivery and save the logistics cost, all units will be delivered to customers in disassembled forms and without glass, we do recommend clients to order the tempered glass with 4mm-5mm thickness locally, that would be much convenient and cheap.
  • We could guarantee the lead time within 48 hours for regular size, while we couldn't promise the delivery time on international shipment due to customs clearing time in different countries.
  • shipping usually takes 3-5 working days, correct delivery cycles dependent on the country delivered to
  • BY EMS (normally take 7-15 working days for delivery, Remote area or Customs Clearance reason, it will be a little longer)
  • To sure the items been correctly delivery to you, pls leave the correct shipment information specifically contact phone number

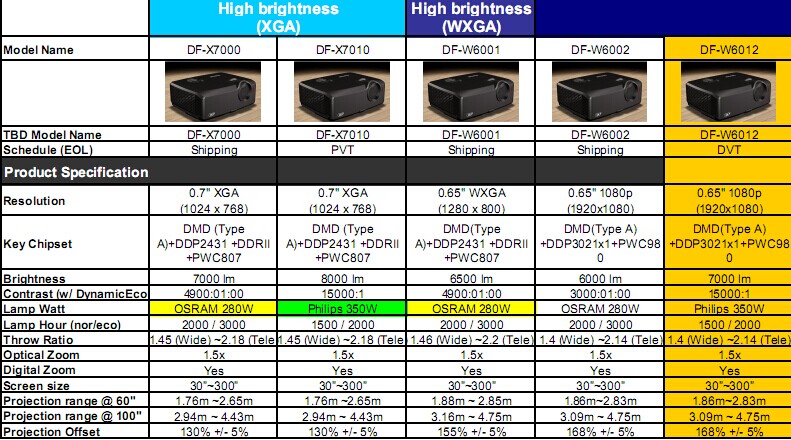

TBD Model Name DF-X7010
Schedule (EOL) PVT
Product Specification
Resolution 0.7" XGA
(1024 x 768)
Key Chipset DMD (Type A)+DDP2431 +DDRII +PWC807
Brightness 8000 lm
Contrast (w/ DynamicEco) 15000:1
Lamp Watt Philips 350W
Lamp Hour (nor/eco) 1500 / 2000
Throw Ratio 1.45 (Wide) ~2.18 (Tele)
Optical Zoom 1.5x
Digital Zoom Yes
Screen size 30”~300”
Projection range @ 60" 1.76m ~2.65m
Projection range @ 100" 2.94m ~ 4.43m
Projection Offset 130% +/- 5%
Color Wheel 5 (RGBYW)
Keystone +/- 40° (Vertical)
Noise min (Nor/Eco) 34dB / 32dB
Speaker 20W (10Wx2)
RGB-in 2
Component Input 1
S-Video 1
Composite Input 1
Audio-in (3.5mm) 2
Audio-in (RCA) (pair) 1
USB Type B (mouse control) 1
(FW Upgrade, mouse control)
USB Type A 1
(Wireless dongle, Jpeg show)
Mini USB 1 (USB display)
Digital Input (HDMI) HDMI (1.3) x 1
Microphone in (3.5mm) 1
SD Card reader NA
RGB-out 1
Audio-out (3.5mm) 1
RS232 (9 pin) 1
Network Mngment (RJ45) 1
12V Power Trigger 1

Product features and characteristics is introduced



1. For Brazil Customer, pls tell us your tax number (CNPJ NO. or CPF NO.)
2. The Goods we will demonstrate as "sample" ship to you and with low price value on the Invoice,


Purpose is to reduce your tariffs, but the prices do not include the destination tariffs,


Different countries have different customs tariffs, it's on buyer's responsibility.


We provide 2 years warranty for hardware and software is free for lifetime.


1.Like it, leave us 5 star feedbacks, Thanks
2. If you are not satisfied with the purchase,please feel free to contact us before leave a negative feedbacks,
t is really our pleasure to show you and support you. Most of problem is only do not know clearly how to use.
